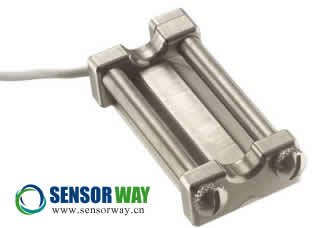

- EL20-S458安全帶拉力測試傳感器中英文產品介紹
- 來源：賽斯維傳感器網 發表于 2014/6/16
Applications: Automotive Crash Test, Military Payload Delivery, Sport and Military Parachute Tether loads, Automatic Reserve Chute Deployment Systems
Industries: Engine and Vehicle
Description:The EL20-S458 provides a super low mass titanium structure to minimize F=MA errors during the crash event. All exterior surfaces are smoothed to prevent snagging on dummy or air bag materials; smoothed exterior profiles protect your expensive crash test dummy from damage while eliminating drag and frictional error. The EL20-S458 is offered with optional ultra low mass slotted titanium axles and super robust armoured cable exit from the device. The user-replaceable cable ensures that even if your cabling is damaged, replacement cables can be rapidly wired and your test facility remains in full operation at all times. The low noise Wheatstone bridge consists of metal foil strain gages which provide full scale outputs of typically 2 mV/V of excitation. The EL20-S458 is also available with internal linearization (Option B) to provide +/- 0.5% FS maximum nonlinearity. Option C provides linearization and high level output of 0.5 to 4.5 V. The EL20-S458 can be configured with a variety of options to fine tune the instrument to your application: select from several standard compensated temperature ranges, slotted or knurled axles, input voltages, lead lengths or specify unique combinations of these options. The EL20-S458 belt tension load cell can be fine-tuned to meet your crash test or military test needs.
Features:
Super low mass titanium design: minimizes F=MA errors in measurement
Ultra low mass slotted titanium axles available
1 KL (5 KN) - 5 KL (25 KN) tension ranges
Low noise
Optional linearized and high level output
Robust user replaceable cablingEL20-S458
典型應用: 汽車碰撞測試，導彈有效載荷，降落傘繩索/吊帶拉力，備用傘自動打開系統
行業: 發動機和機動車輛
產品描述: EL20-S458的超輕鈦結構在碰撞過程中將F=MA誤差降至最低。所有的表面都經過磨光處理，以防止損壞假人或氣囊材料；光滑的表面在消除牽引和摩擦誤差的同時，保護昂貴的碰撞測試假人不受損壞。配件可選超輕帶槽鈦軸和耐用鎧裝電纜。電纜線損壞時，客戶可以隨時迅速更換，從而不影響測試設備的使用。產品采用低噪聲的金屬箔應變片惠斯通電橋，滿量程輸出的典型值為2 mV/V。EL20-S458拉力傳感器還可選 +/- 0.5% FS 非線性，或 0.5 ~ 4.5 V輸出。 客戶可根據應用配置最適合的EL20-S458：可選的溫度補償范圍，帶槽軸或凸邊軸，工作電壓，輸出電纜長度。
特點:
超輕鈦結構設計：測試中將F=MA誤差降至最低
可選超輕帶槽鈦軸
拉力量程：1 KLbf (5 KN) - 5 KLbf (25 KN)
低噪聲
可選高線性或放大輸出
堅固耐用電纜，用戶可自行更換
EL20-S458安全帶拉力測試傳感器更多技術參數及規格書下載請瀏覽：http://yyjsjy.net/sensors/123.html
北京賽斯維測控技術有限公司產品咨詢熱線：010-84775646，84775648。
