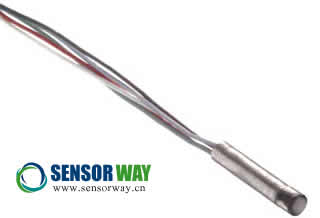

- EPIH超小型壓力傳感器中英文產品介紹
- 來源：賽斯維傳感器網 發表于 2014/6/10
Applications: Space flight and test, Automotive tests, Wind tunnels measurement, Racing testing
Description: The EPIH is a subminiature pressure sensor, specifically designed for Dynamic and High Frequency measurements with resonant frequency up to 1.7 MHz. Available with many various housings, EPIH is one of the smallest pressure sensors in the world. The EPIH is offered in pressure ranges from 0-5 to 300 psi (0-0.35 through 20 bar). Various compensated temperature ranges are available from -40°C up to 80°C. Suitable for dry gas and some fluids with Parylene or RTV protection (options). Non standard excitation, compensated temperatures are available as options.
Features:
Various housings: cylindrical body from diam. 1.27 to 2.36 mm, low profile housing or threads M4x0.7, M5x0.8, 6-32UNC, 10-32UNF
Available ranges 0-0.35 through 20 bar (0-5 to 300 psi)
Useful frequency 0-25 KHz through 340 KHz
CE approved
典型應用: 太空飛行和測試，汽車測試，風洞測量，賽車測試
產品描述: EPIH超小型壓力傳感器專為動態和高頻測量設計，諧振頻率可達1.7MHz。該型號是世界上最小的壓力傳感器之一，多種封裝方式可選，量程從0-5到300psi（0-0.35到20bar）。-40°C 到80°C之間多種補償溫度范圍可選，主要應用于干燥氣體，可選帶聚對二甲苯和RTV涂層，應用于某些液體，也可根據客戶需求定制激勵電壓和補償溫度。
特點:
多種封裝：圓柱結構：直徑從1.27mm到2.36mm，小尺寸封裝或過程連接頭：M4x0.7，M5x0.8，6-32UNC，10-32UNF
量程：0-0.35 到 20 bar（0-5 到 300 psi）
頻率：0~25kHz到340kHz
CE認證
EPIH超小型壓力傳感器更多技術參數及規格書下載請瀏覽：http://yyjsjy.net/sensors/183.html
北京賽斯維測控技術有限公司產品咨詢熱線：010-84775646，84775648。
