- MS1471壓力傳感器中英文產品介紹
- 來源：賽斯維傳感器網 發表于 2014/6/6
Applications: Altitude Measurement, Barometric Pressure, Medical Instrumentation, Consumer Appliances, Tire Pressure

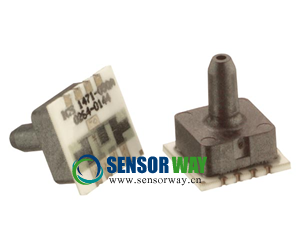

Description: The MS1471 is a piezoresistive silicon pressure sensor packaged in a surface mount configuration. It is intended for high volume applications where small size, light weight, low cost, and compatibility with automated assembly equipment are required. Offset and span are calibrated at room temperature for OEMs requiring higher accuracies. The pressure sensor is available with a gage or absolute pressure sensing chip that is attached to a surface mountable ceramic substrate. A plastic cap is attached to the ceramic substrate, protecting the chip and providing the pressure port. The devices are shipped in plastic anti-static shipping tubes for use with automated production equipment. The drawing shows a standard tube version. Ports are also available with a narrow hole or a large hole to interface with the pressure media.
Features:
PC Board Mountable
0-60 mV Output
Gage and Absolute Pressure
Low Cost
Surface Mount Package
±0.25% Pressure Non-linearity
3 Pressure Port Options
Solid State Reliability
Low Power
典型應用: 海拔高度測量，大氣壓力測量，儀器儀器，消費電子，輪胎壓力
產品描述: MS1471表面貼裝式硅壓阻壓力傳感器適用于大批量，體積小，重量輕，自動裝配的應用領域。傳感器有表壓和絕壓兩種類型，零點和滿量程室溫范圍校正。壓力芯片被壓焊到可表面貼裝的陶瓷基板上，保護罩一方面保護芯片，另一方面提供引壓接口。MS1451采用防靜電塑封管包裝，適用于自動化生產設備。另外，除了引壓管型，客戶還可根據應用需要選擇大、小引壓孔型。
特點:
板載式壓力傳感器
表壓和絕壓
低成本
0~60mV輸出
適合表面貼裝
±0.25%非線性
3種壓力接口選擇
固態結構，性能可靠
低功耗
MS1471壓力傳感器更多技術參數及規格書下載請瀏覽：http://yyjsjy.net/sensors/1.html
北京賽斯維測控技術有限公司產品咨詢熱線：010-84775646，84775648。
