- 50型壓力傳感器中英文產品介紹
- 來源：賽斯維傳感器網 發表于 2014/6/6
Applications: Tire Pressure Sensor, Consumer Appliances, Medical Instrumentation, Barometric Pressure, Altitude Measurement

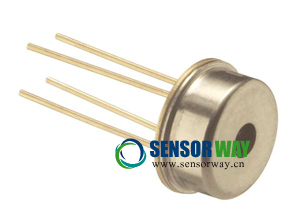

Description: The 50 is a piezoresistive silicon pressure sensor packaged in a TO-5 configuration. Absolute pressure ranges from 0-15 to 0-500 psi are available. It is intended for high volume applications where small size, light weight, and low cost are required. This design is intended for non-corrosive gases and is not recommended for liquids. A gel filling can be applied to provide mild protection against humidity and dust. The devices are shipped in plastic anti-static shipping tubes for use with automated production equipment. For high volume gage applications, contact the factory.
Features:
PC Board Mountable
0-60 mV Output
Absolute Pressure
Low Cost
T0-5 Package
-40ºC to +125ºC Operating range
±0.25% Pressure Non-linearity
Solid State Reliability
典型應用: 輪胎壓力，消費品，醫療器械，氣壓計，高度測量
產品描述: 50型硅壓阻式壓力傳感器采用TO-5封裝，絕壓量程從0~15到0~500psi。適合需要小型，質輕，低成本的大批量應用。測量介質為非腐蝕性氣體�？梢园凑湛蛻粢蠹幽z防塵/防潮。產品采用塑料外殼包裝運輸。大批量表壓應用請與MEAS聯系。
特點:
PCB板安裝
0~60mV輸出
絕壓
低成本
TO-5封裝結構
-40℃~+125℃工作溫度范圍
±0.25%非線性
固態結構，性能可靠
50型壓力傳感器更多技術參數及規格書下載請瀏覽：http://yyjsjy.net/sensors/177.html
北京賽斯維測控技術有限公司產品咨詢熱線：010-84775646，84775648。
