- MS5541-30C壓力傳感器中英文介紹
- 來源：賽斯維傳感器網 發表于 2014/6/6
Applications: Diving computers and divers watches, Mobile water depth measurement systems

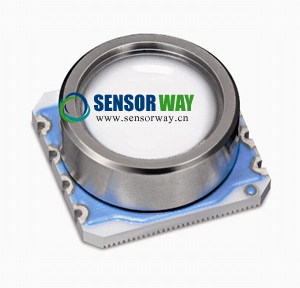

Description: The MS5541-30C is the high-pressure version of MS5541C pressure sensor module. It contains a precision piezoresistive pressure sensor and an improved version of the 16 Bit Micropower Sensor interface IC known from the MS5535C. The ESD sensitivity has been improved to 4kV on all pins. In addition to this the MS5541- 30C is from its outer dimensions compatible to the MS54xx series of pressure sensors. It uses an antimagnetic polished stainless steel ring for sealing with O-ring. The sensor provides 16 Bit pressure and temperature data via a 3 wire serial interface that can be easily interfaced with 4 Bit low power microcontrollers. 64 Bit of factory programmed PROM provides calibration data for a highly accurate pressure and temperature calculation.
Features:
•Resolution 3.0mBar
•Supply voltage 2.2V to 3.6V
•Operating current < 5µA
•Standy current < 0.1µA
•-40°C to +85°C
•No external components required
典型應用: 潛水設備和潛水表，手持水深測量系統
產品描述: MS5541-30C是MS5541C的高壓版本，由高精度的硅壓阻壓力傳感元件和16位模數轉換IC組成，防磁拋光不銹鋼圈與O型圈配合用于防水。產品根據壓力和溫度變化產生的電壓變化轉換為16位數字輸出，通過3線接口和外部微控器通訊，防靜電能力達到4kV 。工廠編程的64位PROM提供高精度的溫度和壓力校正。MS5541-30C在安裝上與MS54XX系列壓力傳感器兼容。
特點:
•分辨率：3.0mBar
•供電電壓：2.2V ~ 3.6V
•工作功耗 < 5µA
•待機功耗 < 0.1µA
•-40°C ~ +85°C
•無需外部元件
MS5541-30C壓力傳感器更多技術參數及規格書下載請瀏覽：http://yyjsjy.net/sensors/453.html
北京賽斯維測控技術有限公司產品咨詢熱線：010-84775646，84775648。
