- MS5536-60C壓力傳感器中英文產品介紹
- 來源：賽斯維傳感器網 發表于 2014/6/6
Applications: Liquid level metering, Medical application, Air flow measurement, HVAC application

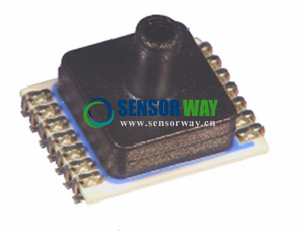

Description: MS5536-60C is a family of high-resolution factory calibrated pressure sensors. The devices include a piezoresistive pressure sensor and an ADC-Interface IC. The 3-wire serial interface ensures simple communication with any microcontroller. The devices provide digital pressure and temperature information as 16-Bit data word each. In addition 64-Bit of individually calibrated compensation coefficients are stored allowing for a highly accurate software compensation of process spread and temperature effects. The devices have a very low standby current and automatically enter power down mode after each conversion. The optimum compromise of refresh rate and average current consumption can be defined by the application software.
Features:
16-Bit ADC resolution
Supply voltage 2.2V to 3.6V
Low supply current
No external components required
典型應用: 液位測量，醫療，空氣流量測量，HVAC
產品描述: MS5536-60C是一款高分辨率的壓力傳感器，經過工廠校正，由硅壓阻壓力傳感元件和模數轉換IC組成。傳感器通過3線串口與外部微控器通訊，提供16位壓力和溫度數字輸出，同時還提供64位經過校正的補償系數，用于高精度的軟件補償。MS5536-60C的主要特點是低功耗以及自動待機（ON/OFF）功能，客戶可以根據應用需要配置采樣頻率和功耗。
特點:
16位ADC分辨率
供電電壓：2.2V ~ 3.6V
低功耗
無需外部元件
MS5536-60C壓力傳感器更多技術參數及規格書下載請瀏覽：
http://yyjsjy.net/sensors/455.html
