- MS5611-01BA03壓力傳感器中英文產品介紹
- 來源：賽斯維傳感器網 發表于 2014/6/5
Applications: Mobile altimeter/Barometer systems, Bike computers, Adventure or multi-mode watches, Variometers, Dataloggers

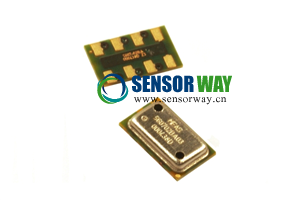

Description: The MS5611-01BA is a new generation of high resolution altimeter sensors from MEAS Switzerland with SPI and I²C bus interface. It is optimized for altimeters and variometers with an altitude resolution of 10 cm. The sensor module includes a high linearity pressure sensor and an ultra low power 24 bit ΔΣ ADC with internal factory calibrated coefficients. It provides a precise digital 24 Bit pressure and temperature value and different operation modes that allow the user to optimize for conversion speed and current consumption. A high resolution temperature output allows the implementation of an altimeter/thermometer function without any additional sensor. The MS5611-01BA can be interfaced to virtually any microcontroller. The communication protocol is simple, without the need of programming internal registers in the device. Small dimensions of only 5.0 mm x 3.0 mm and a height of only 1.0 mm allow for integration in mobile devices. This new sensor module generation is based on leading MEMS technology and latest benefits from MEAS Switzerland proven experience and know-how in high volume manufacturing of altimeter modules, which have been widely used for over a decade. The sensing principle employed leads to very low hysteresis and high stability of both pressure and temperature signal.
Features:
•High resolution module, 10cm
•Low power, 1 μA (standby < 0.15 μA)
•Integrated digital pressure sensor (24 bit ΔΣ ADC)
•I²C and SPI interface up to 20 MHz
•No external components (Internal oscillator)
典型應用: 手持高度計，氣壓計，自行車碼表，運動手表，氣壓表，數據記錄儀
產品描述: MS5611-01BA是MEAS瑞士分公司新一代的高分辨率（10cm）壓力傳感器，帶有SPI和I2C兩種接口，是高度計和氣壓表的理想選擇。傳感器包括高線性度的壓力傳感元件和超級低功耗的24位ΔΣ ADC，內置工廠校準系數。MS5611-01BA提供高精度的24位壓力和溫度數字輸出，客戶可以根據應用需要配置轉換速度和功耗。高分辨率的溫度輸出可以同時實現溫度計的功能。MS5611-01BA可以與所有形式的微控器配合，通訊協議非常簡單，無需修改內部寄存器。傳感器的尺寸非常小，僅為5.0 mm x 3.0 mm，厚度僅為1.0 mm，適合手機應用。這款新傳感器模塊基于先進的MEMS技術，并受益于MEAS過去十幾年來在研發和批量生產氣壓/高度計方面的經驗。先進的傳感技術成就了低磁滯，高穩定性的壓力/溫度傳感器。
特點:
•高分辨率：10cm
•低功耗：1 μA（待機功耗 < 0.15 μA）
•集成的數字式壓力傳感器（24位ΔΣ ADC）
•20MHz的I²C和SPI接口
•無需外部元件（內置振蕩器）
MS5611-01BA氣壓傳感器更多技術參數及規格書下載請瀏覽：http://yyjsjy.net/sensors/603.html
