- MS5561C壓力傳感器中英文產品介紹
- 來源：賽斯維傳感器網 發表于 2014/6/5
Applications: Mobile phones, GPS receivers, Altimeter applications, Personal Navigation Devices (PND), Digital cameras with altimeter function

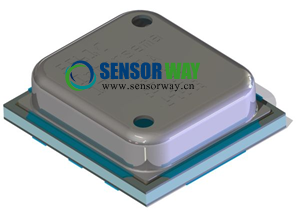

Description: The MS5561C is a SMD-hybrid device including a precision piezo-resistive pressure sensor and an ADC-Interface IC. It uses a three-wire serial interface for communication. The module dimensions of 4.75 mm x 4.25 mm and a height of only 1.6 mm allows for up-to-date SMD design. It provides a 16 bit data word from a pressure and temperature dependent voltage. The MS5561 is a low power, low voltage device with automatic power down (ON/OFF) switching. A 3-wire interface is used for all communications with a micro-controller.
Features:
•Pressure resolution 0.1mBar
•Operating temperature -40°C to +85°C
•Supply voltage 2.2V to 3.6V
•Low supply current, typ. 4µA
•Standby current < 0.1µA
•Calibrated temperature and pressure sensor for 2nd order compensation
•ESD protected, HBM 4kV
典型應用: 手機，GPS，高度計，個人導航設備（PND），帶高度功能的數碼相機
產品描述: MS5561C由高精度的硅壓阻壓力傳感元件和模數轉換IC組成，通過3線接口和外部微控器通訊。傳感器的尺寸為4.75 mm x 4.25 mm ，厚度僅為1.6 mm 。MS5561C提供16位的壓力和溫度數字輸出，主要特點為低電壓，低功耗，以及自動待機（ON/OFF）功能。
特點:
•壓力分辨率：0.1mBar
•工作溫度：-40°C ~ +85°C
•供電電壓：2.2V ~ 3.6V
•工作功耗：4µA
•待機功耗 < 0.1µA
•經過校正的溫度和壓力傳感器，可供二次補償
•ESD保護，HBM 4kV
MS5561C氣壓傳感器更多技術參數及規格書下載請瀏覽：http://yyjsjy.net/sensors/456.html
北京賽斯維測控技術有限公司產品咨詢熱線：010-84775646,84775648。
