- MS5534C壓力傳感器中英文產品介紹
- 來源：賽斯維傳感器網 發表于 2014/6/5
Applications: Mobile altimeter/barometer systems, Weather control systems, Adventure or multi-mode watches, GPS receivers
Industries: Consumer Goods

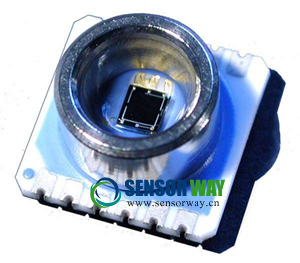

Description: The MS5534C is a SMD-hybrid device including a piezoresistive pressure sensor and an ADC-Interface IC. It provides a 16-bit data word from a pressure and temperature dependent voltage. Additionally the module contains 6 readable coefficients for a highly accurate software calibration of the sensor. MS5534C is a low power, low voltage device with automatic power down (ON/OFF) switching. A 3-wire interface is used for all communications with a microcontroller. The MS5534C is fully software compatible to the previous versions (MS5534A and MS5534B). Compared to the previous versions, the ESD sensitivity level has been improved to 4kV on all pins.
Features:
Integrated pressure sensor (9x9 mm)
Pressure range 10-1100 mbar
16 Bit ADC
coefficients for a software compensation stored on-chip
3-wire serial interface
1 system clock line (32.768 kHz)
Temperature range -40..+125°C
Low voltage (2.2 to 3.6V)
Low power (Standby current: 0.1uA)
Low operating current less than 5uA
Pb-free and RoHS-compatible
Soldering profile: 240-250°C
典型應用: 手持海拔高度/大氣壓力系統，天氣控制系統，探險或多功能手表，GPS
行業: 消費電子和家用電器
產品描述: MS5534C硅壓阻式壓力傳感器采用先進的ADC模數轉換IC，提供16位的壓力和溫度數字輸出。傳感器還提供6個可讀系數用于高精度軟件校正。MS5534C的主要特點是低電壓、低功耗，以及自動待機（ON/OFF）功能。MS5534C通過3線接口和外部微控器通訊，MS5534C與MS5534A和MS5534B具有軟件兼容性。與更早的版本相比，MS5534C的防靜電能力更強（4kV ）。
特點:
集成壓力傳感器（9×9mm）
壓力量程：10-1100mbar
16位ADC
6個軟件補償系數
3線串口
1條系統時鐘線
工作溫度：-40℃~125℃
低電壓（2.2~3.6V）
低功耗（待機電流：0.1uA）
工作電流小于5uA
無鉛&RoHS認證
焊接溫度：240℃~250℃
MS5534C氣壓傳感器更多技術參數及規格書下載請瀏覽：http://yyjsjy.net/sensors/438.html
